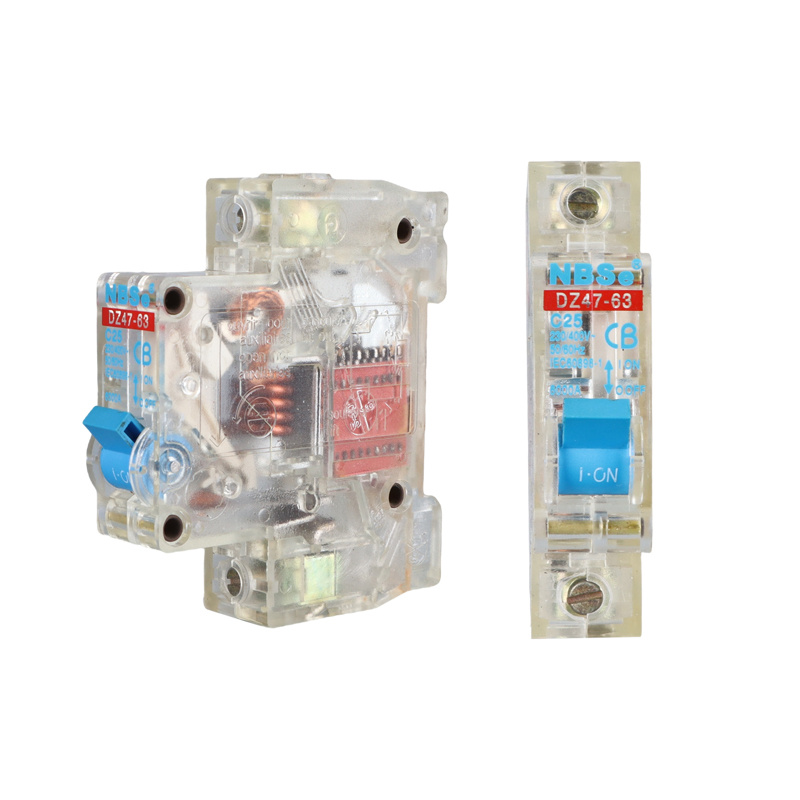

NBSe DZ47-63 Mini Circuit Breaker 1p 15amp Circuit Breaker
Application
| Model Number | DZ47 |
| Type | Mini |
| Poles Number | 1p |
| Rated voltage | 240V/415V |
| protective characteristics | 400C |
| Breaking capacity | 3KA/4.5KA |
| Classfication | 15amp Circuit Breaker |
| Port | NINGBO |
| Lead Time | 10-20 days |
Application
1) DZ47-63 series electric circuit breaker is used in lighting or motor distribution system for protecting overload and short circuit in the system.
2) The product is neoteric in structure light in weight, reliable and excellent in performance .
3) Its frame and parts adopt plastics of high fire resistant and shockproof.
4) The product overload and short circuit protection, as well as for infrequent switching on&of electric equipment and lighting circuit in normal case.
5) The products comply with IEC60898
Specifications
1) Setting temperature of protective characteristics at 400C
2) Rated Voltage:240V/415V DZ47-63 series electric circuit breaker
3) Rated Current:1,3,6,16,20,25,32,40,50,63A
4) Electrical life: no less than 6000 operations
5) Mechanical life:(O-C)no less than 20000 DZ47-63
Technical Data
|
Manufacturing Standards |
IEC 60898 IEC60947 |
||
|
Tropicalization |
Relative Humidity |
°C |
93% RH at 25°C |
|
|
Room Temperature |
°C |
10°Ca 60°C |
|
Electrical Properties |
Rated at 40°C |
A |
6/10/16/20/25/32/40/50/63 |
|
Rated operating voltage at 40°C |
Vac |
240/415 |
|
|
Nominal Frequency |
Hz |
50/60 |
|
|
Interrupting Capacity at 230 V |
kA |
6 |
|
|
Operating temperature |
°C |
40 |
|
|
Degree of Protection |
|
IP20 |
|
|
Number of poles |
|
1/2/3/4 |
|
|
Conductor cross section (minimum allowable) |
mm2 |
25 |
|
|
Minimum number of power moves |
|
4000 |
|
|
Minimum number of mechanical operations |
|
10000 |
|
|
Operation curve |
|
B/C/D |
|
|
Current Trip Curve |
A |
5 a 10 In |
|
|
Characteristic Intervention |
|
attach |
|
|
Type Of Assembly |
FOR RIEL DIN 35 mm |
||
|
Features |
MAGNETIC COIL: ensures the switching of short-circuit, speaking within the following ranges: 5 to 10 times rated current (Type C), 3 to 5 times rated current ( Type B ), 10 to 20 times rated current ( Type D ) | ||
| BIMETAL: ensures the breaker trip when overloaded. | |||
| ARC CHAMBER: effectively dissipates the electric arc that is generated by the opening contacts of the trigger mechanism in the presence of an overload or short circuit. | |||
| Present Certificates | CE CB | ||
| ISO 9001-2000 awarded by the competent certification body, Nonarc is qualified in the manufacturing of the object | |||
| IEC 60898 standards in the manufacture of the goods | |||
| Curve compliance issued Shot by an accredited laboratory for effect | |||
| Life, given by Nonarc to ensure that the life of the goods offered by at least 15 years. | |||
| Testing For Acceptance | Before receiving the circuit breakers (breakers), customers may perform the tests may be necessary to ensure compliance with the technical specifications. | ||
| Accessories | OF: Auxiliary contact | ||
| FB: Auxiliary alarm | |||
| QY: under/over volage protector | |||
| FL: Shunt release | |||
Rated making and breaking capacity
| DZ47-63(C) | ||||
|
Rated current(A) |
Pole number |
Voltage(V) |
Breaking capacity |
|
|
1~40 |
1P |
230 |
4500 |
|
|
1~40 |
2,3,4P |
400 |
4500 |
|
|
50~60 |
1P |
230 |
3000 |
|
|
50~60 |
2,3,4P |
400 |
3000 |
|
| DZ47-63(D) | ||||
| Rated current(A) | Pole number | Voltage(V) | Breaking capacity | |
| 1~60 | 1P | 230 | 4000 | |
| 1~60 | 2,3,4P | 400 | 4000 | |
Characteristic Curve
Descriptions
Production workflow chart
Shipping Terms &Conditions
* FAST SHIPPING from our Wenzhou China Factory!
* Item shipped in 5-15 working days after payment is received depends on the quantity of the order.
* Item shipped by UPS,FedEX,DHL and others, depending on size and weight of total order.
* Item only shipped to address listed on the invoice; Not responsible for shipping to wrong address.
* Tracking number will be sent to you as soon as we ship the goods.
Details
Introducing the NBSe DZ47-63 Mini Circuit Breaker 1p 15amp Circuit Breaker! This incredible circuit breaker will revolutionize the way we protect electrical systems.
One of the outstanding features of this circuit breaker is its protection function, which is set to trip at a temperature of 400C. This ensures that your electrical system remains safe even in high temperatures. No more worries about overheating or potential hazards!
NBSe DZ47-63 series circuit breakers have a rated voltage of 240V/415V and are suitable for a wide range of applications. Whether you need it for residential or commercial use, this circuit breaker has you covered. The versatility and reliability of this product make it the first choice of electricians and homeowners.
The circuit breaker is not only suitable for various voltage systems, but also has different rated current ranges. 1A, 3A, 6A, 16A, 20A, 25A, 32A, 40A, 50A and 63A options are available according to your specific needs. This allows for flexibility and customization, ensuring you provide the appropriate level of protection for each circuit.
In terms of durability, the NBSe DZ47-63 mini circuit breaker is built to last. The electrical life is not less than 6000 times to ensure long-term reliable performance. In addition, the mechanical life (referring to the number of times the circuit breaker can be opened and closed) is not less than 20,000 times. This means you can trust that the product will withstand regular use and hold up well.
Overall, the NBSe DZ47-63 Mini Circuit Breaker 1p 15amp Circuit Breaker is a high quality, reliable electrical protection solution. With its temperature sensitive protection features, versatile voltage options and exceptional durability, it is an excellent choice for anyone looking to ensure the safety and reliability of their electrical systems. Say goodbye to worrying about overheating or electrical failure - the NBSe DZ47-63 Mini Circuit Breaker solves it all!
